RAAL TI-1b, Ribbon/Amp Interface

TI-1b

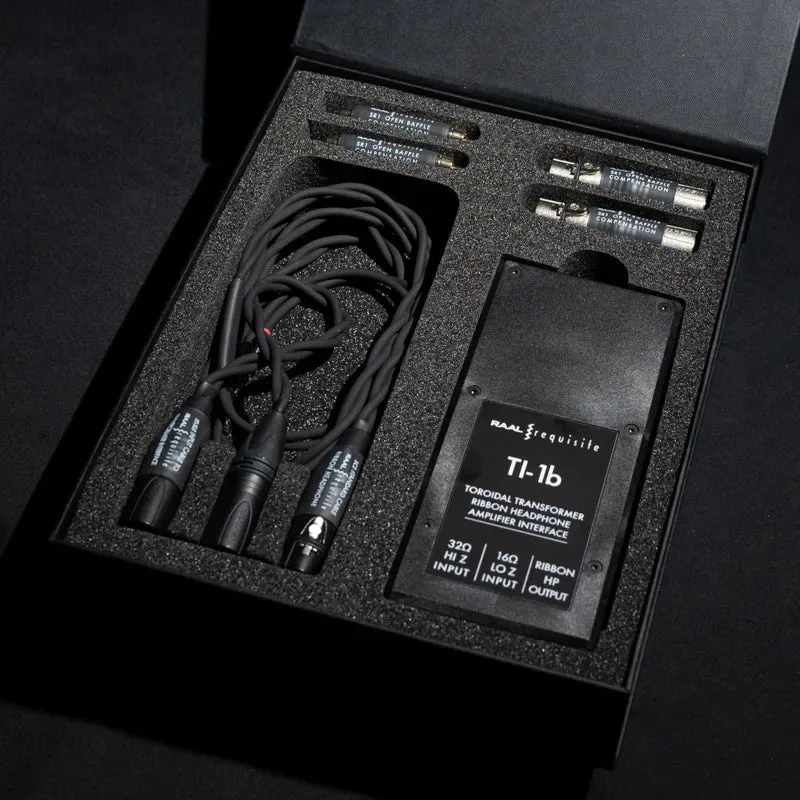

Transformer Ribbon/Amp Interface in Molded Box, includes: Cables (SC2 & ITI-XLR) and OB Compensation Barrels (XLR and RCA)

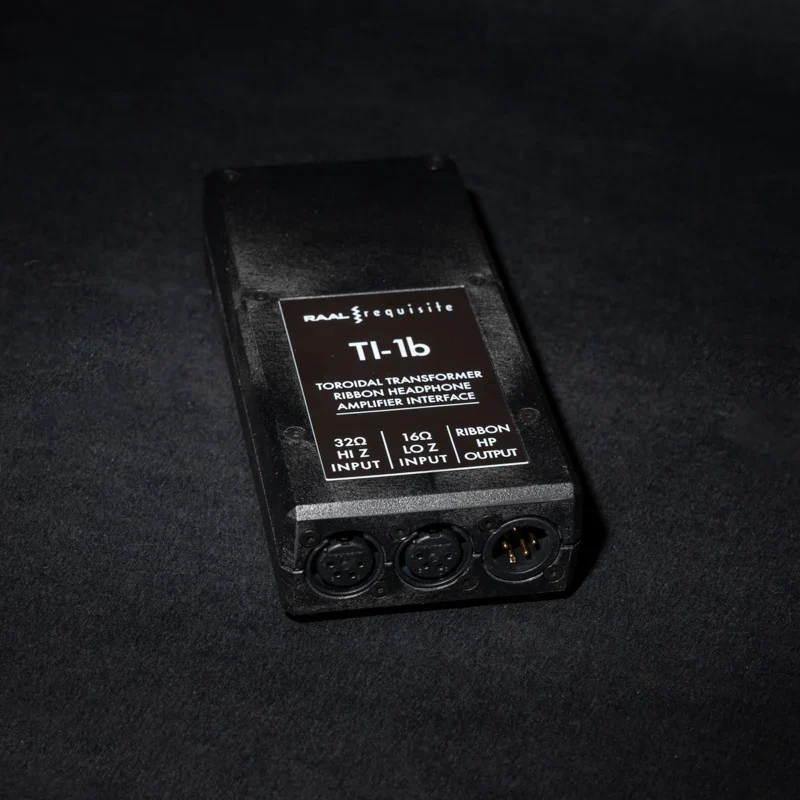

The TI-1b, Ribbon/Amp Interface

TI-1b At A Glance

The TI-1b provides impedance matching of our True Ribbon Headphones (0.2Ω) to headphone amplifiers having 2-watts to 6-watts of output power when driving 16Ω or 32Ω loads.
Higher powered amplifiers also work well with the TI-1b if, mindful attention to volume setting is observed and maintained.
Typical connection from the TI-1b to a headphone amplifier is made using our ITI-XLR (4-pin to 4-pin) cable.  For amplifiers having only a 6.3mm (tip, ring, sleeve) headphone connection, we offer our ITI-TRS cable.
When connecting to a 2-channel speaker amp, with binding post speaker outputs, we offer our ITI-BAN (banana) cable or our ITI-SPD (spade) cable.

Partial list of suitable headphone amps.

Please test for yourself (your mileage may vary).

• AURIS Audio  (SR1+CA1) – Nirvana IV (link)
• dCS (CA1) – Lina (link)
• EarMen (CA1) – CH-Amp (link)
• Ferrum (SR1+CA1) – OOR (link)
• iFi (SR1+CA1) – Pro iCAN Signature (link)
• Mal Valve (SR1+CA1) – Head amp three Mk 4 (link)
• Phatlab (SR1+CA1 – RASA (link)
• Riviera (SR1+CA1) – AIC10 (link)
• SAEQ (SR1+CA1) – HyperionGe, Morpheus, HSA-1c, PDA-1b (link)
• Schiit Audio (SR1+CA1) – Jotunheim R (link)
• Shanling (SR1+CA1) – M30 (link)
• Solaja Audio (SR1+CA1) – VM-1 (link)
• Viva Audio (SR1+CA1) – Egoista 845 (link)
• Wells Audio (SR1+CA1) – Milo (link)
