Anbieter: kopfhoererboutique

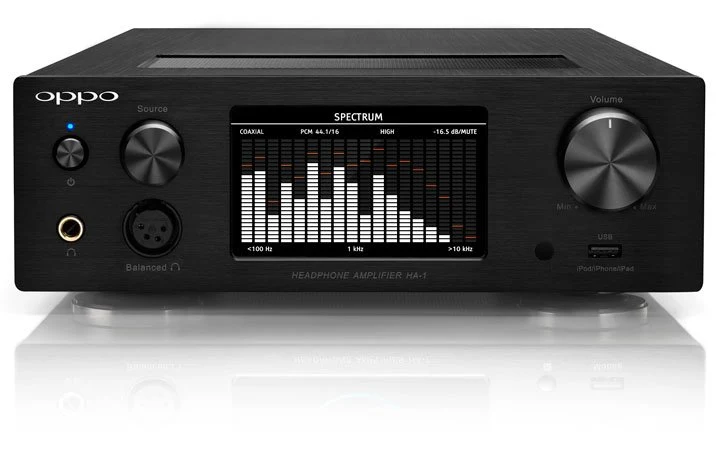

DEMO G-OPPO HA 1 Black
Beschreibung
Modifizierte Version des OPPO HA 1 von Dr. Gert Volk.
Demomodel. Sehr guter Zustand. 300 Betriebsstunden. Zubehör, Verpackung alles vorhanden.
einfach Probehören !

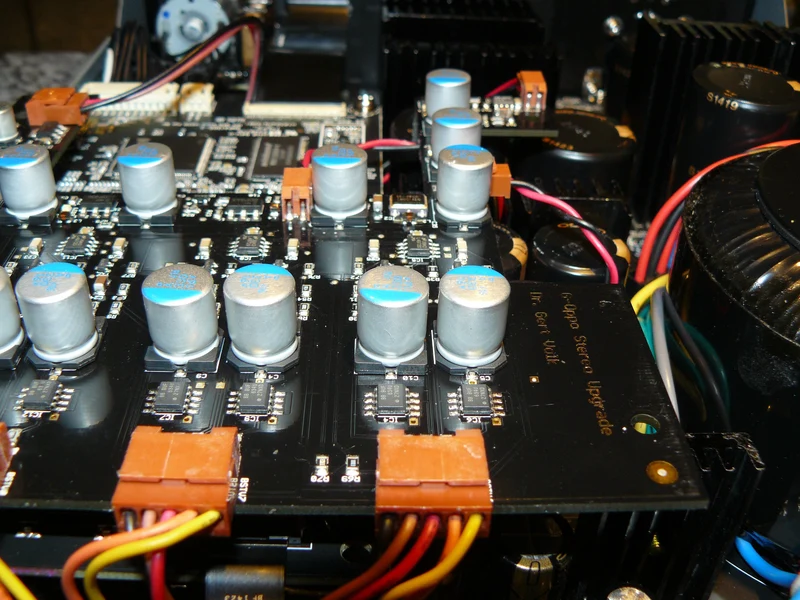

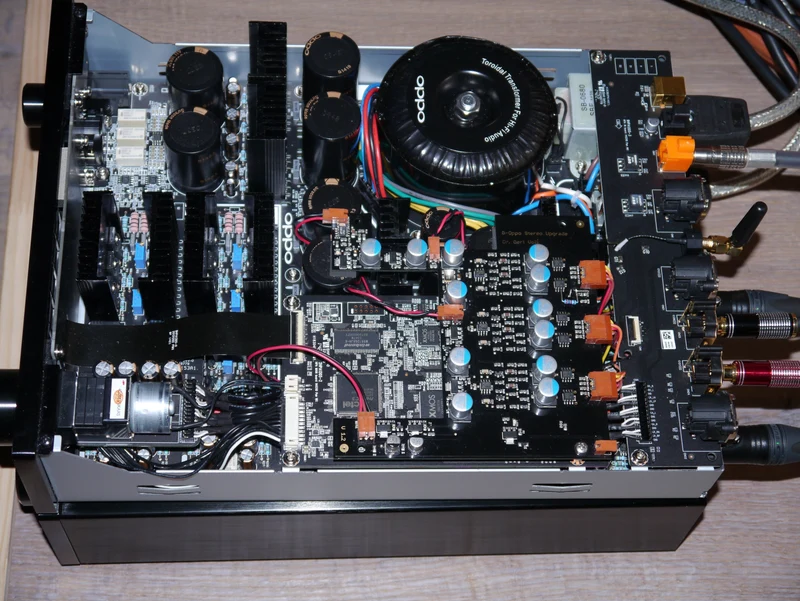

Überarbeitung des Analogpfades, komplette DC-Kopplung ohne Kondensatoren, bessere Spannungsversorgung, neue Clock mit Jitter <1ps für DA-Wandler, extrem rauscharme Versorgung der Clock durch fünfstufigen Superreg, ebensolche Versorgung der Analogpins des DA-Wandlers, sechs extrem niederohmige und kräftige Ausgangsstufen mit zugehöriger Spannungsversorgung.

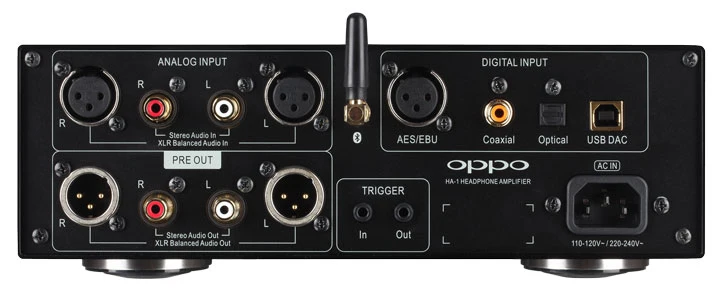

The OPPO HA-1 Headphone Amplifier, DAC & Pre-Amplifier.Drawing upon the proven circuit design of the award-winning OPPO BD players, the HA-1 combines an uncompromising Class A balanced power amplifier section with the performance of the ESS 9018 Sabre32 Reference DAC.OPPO designs the HA-1 headphone amplifier with the same universal approach as our Blu-ray players. The HA-1 is a high performance headphone amplifier, and it doubles as an asynchronous USB DAC, a stereo pre-amplifier, a digital audio dock for mobile devices, and a Bluetooth audio transport. Its fully balanced design and numerous inputs ensure the best in fidelity and versatility.SpecificationsDesigns and specifications are subject to change without notice:General Dimensions (W x H x D)10.0 x 3.1 x 13.1 inches, 254 x 80 x 333 mmMass13.0 lbs, 5.9 kgPower SupplyAC 110-120 V~ / 220-240 V~, 50/60 Hz auto-sensingPower Consumption70 W (operation), 0.5 W (standby)Trigger Input3.5 V – 15 V, 10 mA minimumTrigger Output12 V, 100 mA maximumOperating Temperature41 °F - 95 °F, 5 °C - 35 °COperating Humidity15% - 75% No condensationRecommended Headphone Impedance32 ohm – 600 ohmBalanced Headphone Jack Output (XLR-4) Pin order1: L+, 2: L-, 3: R+, 4: R-, Shell: GND6.35 mm Headphone Jack Output Pin orderTip: L, Ring: R, Sleeve: GNDXLR Balanced Audio Input Input Impedance15k ohmMaximum Input Level18 Vrms, +27.3 dBu (0 dBu = 0.775 Vrms)RCA Stereo Audio Input Input Impedance10k ohmMaximum Input Level9 Vrms, +21.3 dBu (0 dBu = 0.775 Vrms)Coaxial, Optical, AES/EBU Digital Inputs Input FormatStereo PCMSampling Frequencies44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz,176.4 kHz, 192 kHzWord Length16-bit, 24-bitUSB DAC Audio Input (USB B Type) Input FormatStereo PCM, Stereo DSD (DoP v1.1 or native)PCM Sampling Frequencies44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz,176.4 kHz, 192 kHz, 352.8 kHz, 384 kHzPCM Word Length16-bit, 24-bit, 32-bitDSD Sampling Frequencies2.8224 MHz (DSD64), 5.6448 MHz (DSD128),11.2896 MHz (DSD256, native mode only)ProfileUSB 2.0, USB Audio 2.0Mobile USB Audio Input (USB A Type) Input FormatStereo PCMPCM Sampling Frequencies44.1 kHz, 48 kHzProfileUSB 2.0, USB Audio 2.0VBUS Power Output+5 V, 2.1 ABluetooth Audio Input StandardBluetooth 2.1+EDRProfileiAP, SPP, AVRCP, A2DPAudio Transmission FormatSBC, aptX
DAC Performance SpecificationsXLR OutputRCA OutputOutput Level: 4.6 ± 0.3 Vrms Output Level: 2.3 ± 0.3 Vrms Frequency Response: 10 Hz – 170 kHz (+0/-3 dB)20 Hz – 20 kHz (+0/-0.07 dB)Frequency Response: 10 Hz – 170 kHz (+0/-3 dB)20 Hz – 20 kHz (+0/-0.07 dB)THD+N at 1 kHz (A Weight, 20 Hz – 20 kHz):< 0.00056% (< -105 dB)THD+N at 1 kHz (A Weight, 20 Hz – 20 kHz): < 0.00056% (< -105 dB) Channel Separation:> 105 dBChannel Separation:> 105 dBSignal-to-Noise Ratio (A Weight, 20 Hz – 20 kHz): Signal-to-Noise Ratio (A Weight, 20 Hz – 20 kHz): > 115 dB> 113 dBDynamic Range(1 kHz -60 dBFS, A Weight, 20 Hz – 20 kHz):> 115 dBDynamic Range(1 kHz -60 dBFS, A Weight, 20 Hz – 20 kHz):> 113 dB(Test condition: USB DAC input in Home Theatre Bypass mode and the volume knob at Max position.) Pre-amplifier Performance SpecificationsXLR Input – XLR OutputRCA Input – RCA OutputRated Output Level: 4.6 Vrms Rated Output Level: 2.3 Vrms Frequency Response:10 Hz – 200 kHz (+0/-2 dB) 20 Hz – 20 kHz (+0/-0.04 dB)Frequency Response:10 Hz – 200 kHz (+0/-2 dB)20 Hz – 20 kHz (+0/-0.04 dB)THD+N at 1Khz (A Weight, 20 Hz – 20 kHz):< 0.00056% (< -105 dB)THD+N at 1Khz (A Weight, 20 Hz – 20 kHz):< 0.00071% (< -103 dB)Channel Separation:> 120 dBChannel Separation:> 110 dBSignal-to-Noise Ratio (A Weight, 20 Hz – 20 kHz):> 110 dBSignal-to-Noise Ratio (A Weight, 20 Hz – 20 kHz):> 105 dBDynamic Range(1 kHz -60 dB, A Weight, 20 Hz – 20 kHz):> 120 dBDynamic Range(1 kHz -60 dB, A Weight, 20 Hz – 20 kHz):> 115 dBMaximum Gain (100 mVrms input):6 dBMaximum Gain (100 mVrms input):6 dB(Test condition: Volume knob at Max position and an input signal to drive the output to the rated output level.) Headphone Power Amplifier SpecificationsXLR Input – Balanced OutputRCA Input – 6.35mm OutputMaximum Output Power (Per Channel) into 600 Ohm:2400 mW Maximum Output Power (Per Channel) into 32 Ohm:3000 mWMaximum Output Power (Per Channel) into 600 Ohm:600 mW Maximum Output Power (Per Channel) into 32 Ohm:3500 mWRated Output Power (Per Channel)into 600 Ohm:800 mW Rated Output Power (Per Channel)into 32 Ohm:2000 mW Rated Output Power (Per Channel)into 600 Ohm:200 mW Rated Output Power (Per Channel)into 32 Ohm:500 mWFrequency Response at Rated Power10 Hz – 200 kHz (+0/-1 dB)20 Hz – 20 kHz (+0/-0.04 dB)Frequency Response at Rated Power10 Hz – 200 kHz (+0/-1 dB)20 Hz – 20 kHz (+0/-0.04 dB)THD+N at 1kHz (A Weight, 20 Hz – 20 kHz)Rated Power:< 0.0018% (< -95 dB) THD+N at 1kHz (A Weight, 20 Hz – 20 kHz)50mW:< 0.001% (< -100 dB)THD+N at 1kHz (A Weight, 20 Hz – 20 kHz)Rated Power:< 0.0056% (< -85 dB) THD+N at 1kHz (A Weight, 20 Hz – 20 kHz)50mW:< 0.0022% (< -93dB)Channel Separation:> 120 dBChannel Separation:> 90 dBSignal-to-Noise Ratio (A Weight, 20 Hz – 20 kHz):> 111 dBSignal-to-Noise Ratio (A Weight, 20 Hz – 20 kHz):> 111 dBDynamic Range(1 kHz -60 dB, A Weight, 20 Hz – 20 kHz):> 120 dBDynamic Range(1 kHz -60 dB, A Weight, 20 Hz – 20 kHz):> 115 dBOutput Impedance:0.5 OhmOutput Impedance:0.7 Ohm(Test condition: Volume knob at Max position and an input signal to drive the output with 600 Ohm loads to the rated output power, unless otherwise noted.)
